Step by step instructions to train Yolo-v5 & do Inference(from ultralytics) to count the blood cells and localize them.

I vividly remember that I tried to do an object detection model to count the RBC, WBC, and platelets on microscopic blood-smeared images using Yolo v3-v4, but I couldn’t get as much as accuracy I wanted and the model never made it to the production.

Now recently I came across the release of the Yolo-v5 model from Ultralytics, which is built using PyTorch. I was a bit skeptical to start, owing to my previous failures, but after reading the manual in their Github repo, I was very confident this time and I wanted to give it a shot.

And it worked like a charm, Yolo-v5 is easy to train and easy to do inference.

So this post summarizes my hands-on experience on the Yolo-v5 model on the Blood Cell Count dataset. Let’s get started.

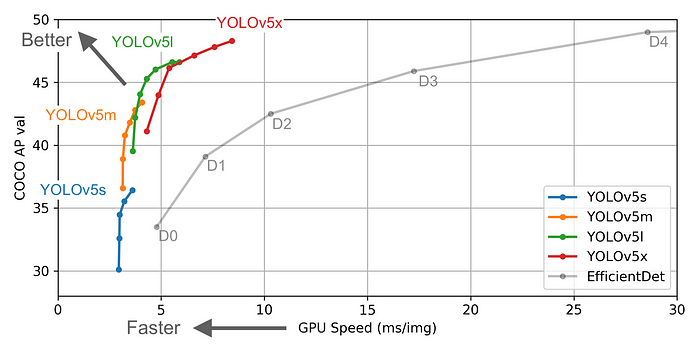

Ultralytics recently launched Yolo-v5. For time being, the first three versions of Yolo were created by Joseph Redmon. But the newer version has higher mean Average Precision and faster inference times than others. Along with that it’s built on top of PyTorch made the training & inference process very fast and the results are great.

Source: Ultralytics

And if you wish to follow along simultaneously, open up these notebooks,

Google Colab Notebook — Training and Validation: link

Google Colab Notebook — Inference: link

1. Data — Preprocessing (Yolo-v5 Compatible)

I used the dataset BCCD dataset available in Github, the dataset has blood smeared microscopic images and it’s corresponding bounding box annotations are available in an XML file..

Sample Image and its annotation :

Sample Input Image

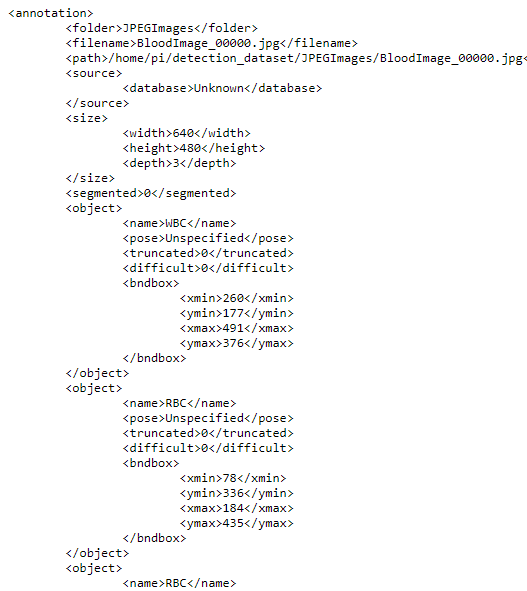

Labels in the .XML file

Upon mapping the annotation values as bounding boxes in the image will results like this,

Sample Input Image

But to train the Yolo-v5 model, we need to organize our dataset structure and it requires images (.jpg/.png, etc.,) and it’s corresponding labels in .txt format.

And then the format of .txt files should be :


- One row per object.

- Each row is class x_center y_center width height format.

- Box coordinates must be in normalized xywh format (from 0–1). If your boxes are in pixels, divide x_center and width by image width, and y_center and height by image height.

- Class numbers are zero-indexed (start from 0).

An Example label with class 1 (RBC) and class 2 (WBC) along with each of their x_center, y_center, width, height (All normalized 0–1) looks like the below one.

Example of labels.txt

So let’s see how we can pre-process our data in the above-specified structure.

Our first step should be parsing the data from all the XML files and storing them in a data frame for further processing. Thus we run the below codes to accomplish it.

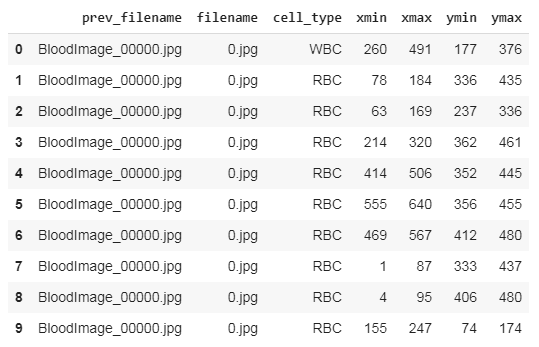

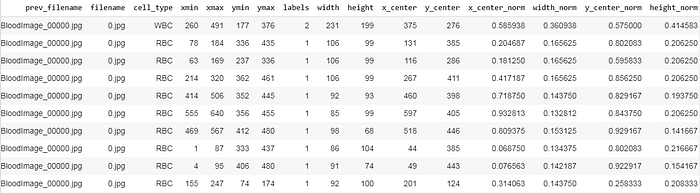

And the data frame should look like this,

After saving this file, we need to make changes to convert them into Yolo-v5 compatible format.

I have written some code to transform our existing data frame into the structure specified in the above snippet.

After preprocessing our data frame looks like this, here we can see there exist many rows for a single image file (For instance BloodImage_0000.jpg), now we need to collect all the (labels, x_center_norm, y_center_norm, width_norm, height_norm) values for that single image file and save it as a .txt file.

Now we split the dataset into training and validation and save the corresponding images and it’s labeled .txt files. For that, I’ve written a small piece of the code snippet.

After running the code, we should have the folder structure as we expected and ready to train the model.

End of data pre-processing.

2. Model — Training

To start the training process, we need to clone the official Yolo-v5’s weights and config files. It’s available here.

bcc.yaml :

Now we need to create a Yaml file that contains the directory of training and validation, number of classes and it’s label names. Later we need to move the .yaml file into the yolov5 directory that we cloned.

model’s — YAML :

Now we need to select a model(small, medium, large, xlarge) from the ./models folder.

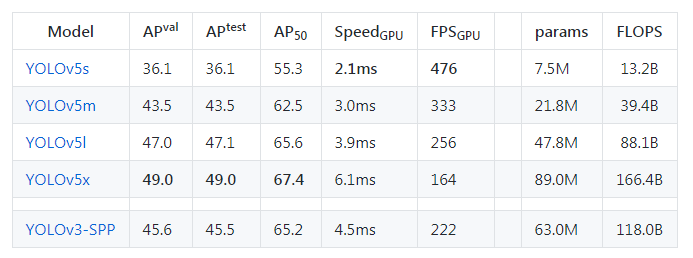

The figures below describe various features such as no.of parameters etc., for the available models. You can choose any model of your choice depending on the complexity of the task in hand and by default, they all are available as .yaml file inside the models' folder from the cloned repository

Yolo Model Parameters from Ultralytics

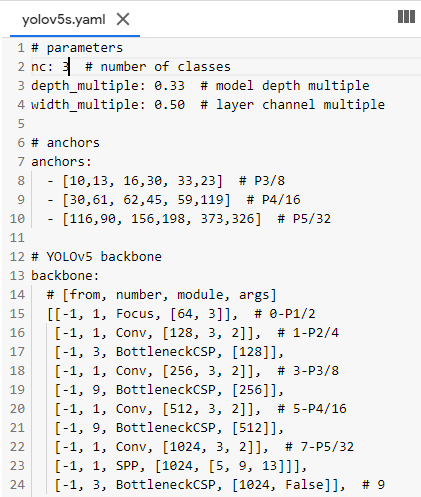

Now we need to edit the *.yaml file of the model of our choice. We just have to replace the number of classes in our case to match with the number of classes in the model’s YAML file. For simplicity, I am choosing the yolov5s.yaml for faster processing.

NOTE: This step is not mandatory if we didn’t replace the nc in the model’s YAML file (which I did), it will automatically override the nc value that we created before (bcc.yaml) and while training the model, you will see this line, which confirms that we don’t have to alter it.

“Overriding ./yolov5/models/yolov5s.yaml nc=80 with nc=3”

Model train parameters :

We need to configure the training parameters such as no.of epochs, batch_size, etc.,

Also, we can view the logs in tensorboard if we wish.

This will initiate the training process and takes a while to complete.

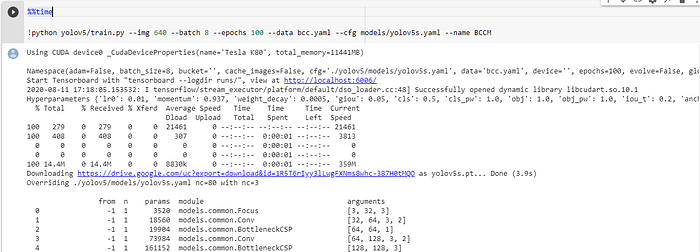

I am posting some excerpts from my training process,

Excerpts From the training process

Excerpts From the training process

So from the values of P (Precision), R (Recall), and mAP (mean Average Precision) we can know whether our model is doing well or not. Even though I have trained the model for only 100 epochs, the performance was great.

Tensorboard Visualization

End of model training.

3. Inference

Now it’s an exciting time to test our model, to see how it makes the predictions. But we need to follow some simple steps.

Inference Parameters

Run the below code, to make predictions on a folder/image.

The results are good, some excerpts.

Sample Outputs

Sample Outputs

Interpret outputs from the .txt file : (Optional Read)
Just in case , say you are doing face detection and face recognition and want to move your process one more step say you want to crop the faces using opencv using the bbox coordinates and send them into a face recognition pipeline, in such case we not only need the output like the above figure,also we need the coordinates for every faces. So is there any way ? The answer is yes ,read along.

(I only used face detection and recognition as an example, Yolo-V5 can be used to do it as well)

Also, we can save the output to a .txt file, which contains some of the input image’s bbox co-ordinates.

Run the below code, to get the outputs in .txt file,

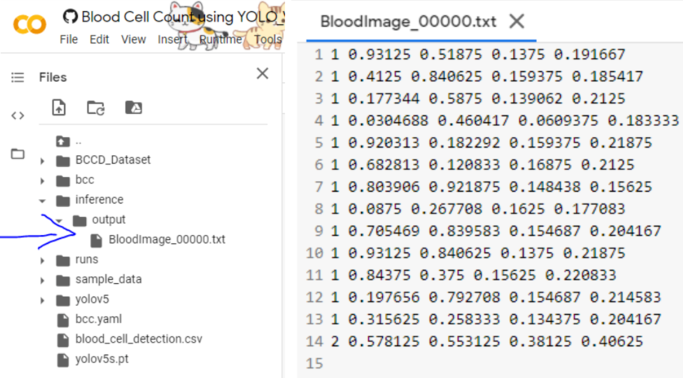

Upon successfully running the code, we can see the output are stored in the inference folder here,

Output labels

Great, now the outputs in the .txt file are in the format,

[ class, X_center_norm, y_center_norm, Width_norm, Height_norm ] , we need to convert this into → [ class, x_min, y_min, width, height ] , ( Also De-normalized) to make plotting easy.

To do so, just run the below code which performs the above transformation.

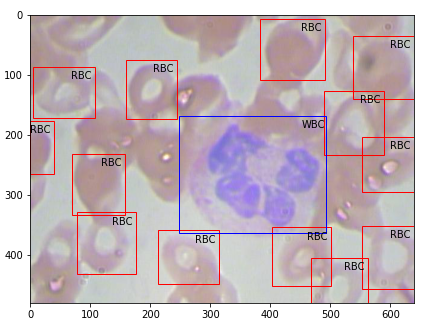

Then the output plotted image looks like this, great isn’t.

The output from the previous code

4. Moving Model to Production

Just in case, if you wish to move the model to the production or to deploy anywhere, you have to follow these steps.

First, install the dependencies to run the yolov5, and we need some files from the yolov5 folder and add them to the python system path directory to load the utils. So copy them into some location you need and later move them wherever you need.

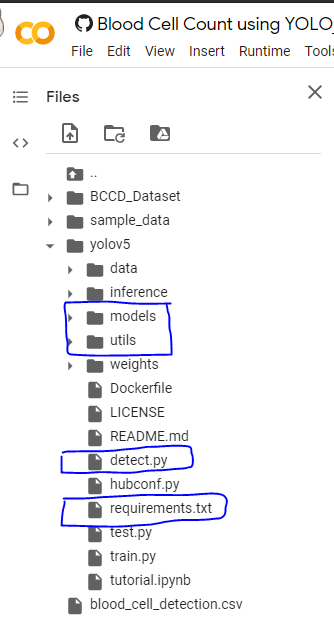

So in the below picture-1, I have boxed some folders and files, you can download them and keep them in a separate folder as in picture-2.


Picture-2 Necessary files to load in production.

Now we need to tell the python compiler to add the above folder location into account so that when we run our programs it will load the models and functions on runtime.

In the below code snippet, on line-9, I have added the sys.path… command and in that, I have specified my folder location where I have moved those files, you can replace it with yours.

Then fire up these codes to start prediction.

Picture-2 Necessary files to load in production.

And there we come to the end of this post. I hope you got some idea about how to train Yolo-v5 on other datasets you have. Let me know in the comments if you face any difficulty in training and inference.

5. References

To know more about Yolo-v5 in detail, check the official Github repo.

I have trained the entire BCC model in a Colab Notebook, in case if you wish to take a look at it, it’s available in the below links.

Google Colab Notebook — Training and Validation: link

Google Colab Notebook — Inference: link

All other supporting files, datasets and notebooks are also available at my GitHub repo here
